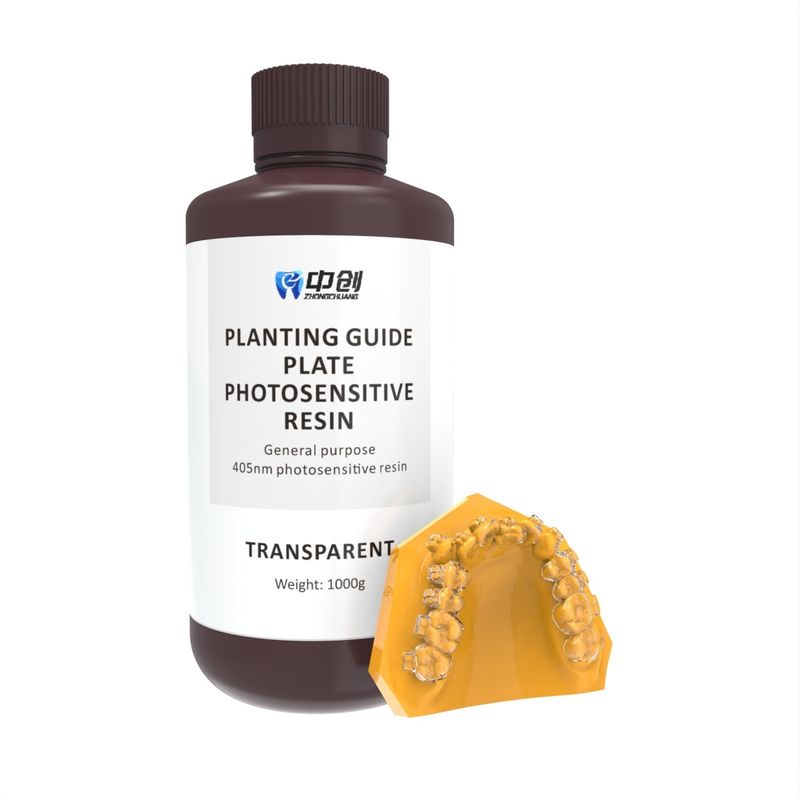

Dental 3D Printing Transparent Orthodontic Bracket Adhesive Guide UV Resin Material

Name: Dental 3D Printing Transparent Orthodontic Bracket Adhesive Guide UV Resin Material
Brand: Zhongchuang Medical Group Co., Ltd,
SKU: DJ13
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongchuang Medical

Certification: ASTM D638,ASTM D790,ASTM D256,ASTM D2204

Model Number: DJ13

Payment & Shipping Terms

Minimum Order Quantity: 1 bottles

Price: Negotiatial

Packaging Details: 1kg packaging size: 100*100*220mm 10kg packaging size: 500*210*260mm

Delivery Time: 5-8 Days

Payment Terms: T/T, , L/C, Western Union, MoneyGram

Supply Ability: 100000kg by month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          1kg Orthodontic Bracket Cement, LCD Printer Orthodontic Bracket Cement, DLP Printer Orthodontic Bonding Resin


Color:	Transparent	Packaging:	1kg/bottle
Applicable Equipment:	405nm Band DLP And LCD Three -dimensional Printer	Shore D:	75
Bending Strength:	65-78 Mpa	Material:	Orthodontic Bracket Orthodontic Guide Plate Resin
Breaking Elongation Rate:	6.5-9.5%

Color:	Transparent
Packaging:	1kg/bottle
Applicable Equipment:	405nm Band DLP And LCD Three -dimensional Printer
Shore D:	75
Bending Strength:	65-78 Mpa
Material:	Orthodontic Bracket Orthodontic Guide Plate Resin
Breaking Elongation Rate:	6.5-9.5%

Description

Dental 3D Printing Transparent Orthodontic Bracket Adhesive Guide UV Resin Material

Product Specifications

Attribute	Value
Color	Transparent
Packaging	1kg/bottle
Applicable equipment	405nm band DLP and LCD three-dimensional printer
Shore D	75
Bending strength	65-78 Mpa
Material	Orthodontic bracket orthodontic guide plate Resin
Breaking elongation rate	6.5-9.5%

Technical Performance

Parameter	Test standards	Unit	Result
Shore	ASTM D2240	Shore D	75
Bending strength	ASTM D790	Mpa	65-78
Bending modulus	ASTM D790	Mpa	1760-1950
Notch impact strength	ASTM D256	Mpa	23.5-28.5
Breaking elongation rate	ASTM D638	%	6.5-9.5
Water absorption rate	ASTM D570	%	0.65-0.89
Hot deformation temperature	/	℃	＜75

Product Overview

Orthodontic bracket resin is a specialized material used to manufacture orthodontic brackets. Composed of a precise mixture of epoxy resin and hardener, it bonds securely to teeth to facilitate controlled tooth movement during orthodontic treatment.

Key Features

Excellent Mechanical Properties: High strength (65-78 Mpa), modulus (1760-1950 Mpa), and toughness to withstand orthodontic forces
Optical Clarity: High transparency minimizes visual impact on teeth
Superior Material Compatibility: Bonds firmly to both teeth and bracket materials
MMA-Free Formula: Contains no methyl methacrylate allergens
Odorless Application: Comfortable for both patients and practitioners
Easy Handling: Simple application and removal process
Stain Resistance: Maintains appearance throughout treatment

Clinical Applications

Precision Tooth Alignment: Enables accurate bracket placement for controlled tooth movement
Bracket Construction: Forms durable bonds for traditional metal and modern ceramic braces
Aesthetic Solutions: Ideal for clear or tooth-colored bracket systems
Secure Bonding: Provides long-term stability throughout treatment

Frequently Asked Questions

What is the 3D printed orthodontic bracket adhesive guide resin made of?

The 3D printed orthodontic bracket bonding guide resin is a specially formulated photosensitive polymer compound. This medical-grade material is engineered for biocompatibility in oral applications while meeting the precision requirements of 405nm DLP/LCD 3D printing. The resin undergoes layer-by-layer photopolymerization to create guides with exceptional dimensional accuracy and mechanical stability.

Is 3D printed orthodontic bracket adhesive guide resin combined with teeth?

Yes, through a professional bonding process: The guide resin is precisely contoured to match tooth anatomy and secured with dental adhesives. Clinicians may employ surface treatments to enhance bonding strength. Once properly applied, the guide maintains stable positioning throughout treatment while enabling accurate bracket placement.

Are there different kinds of 3D printed orthodontic bracket adhesive guide resins available?

Multiple resin formulations exist to address various clinical requirements. Selection depends on factors including biocompatibility needs, mechanical properties, and printing parameters. Consultation with an orthodontic specialist is recommended to identify the optimal material for each patient's treatment plan.

Is 3D printed orthodontic bracket adhesive guide resin safe for patients?

When using certified medical-grade resins under professional supervision, the material is completely safe. These biocompatible formulations meet stringent oral health standards without compromising enamel integrity. Proper application techniques and maintenance of oral hygiene ensure optimal safety throughout treatment.

How does 3D printing orthodontic bracket adhesive guide resin assist treatment?

The resin enables precision orthodontics through: Custom-designed guides that match individual dental anatomy, eliminating positioning errors. Consistent bracket placement accuracy reduces treatment time. The material's stability maintains correction forces as prescribed. This technology represents a significant advancement in efficient, predictable orthodontic outcomes.
